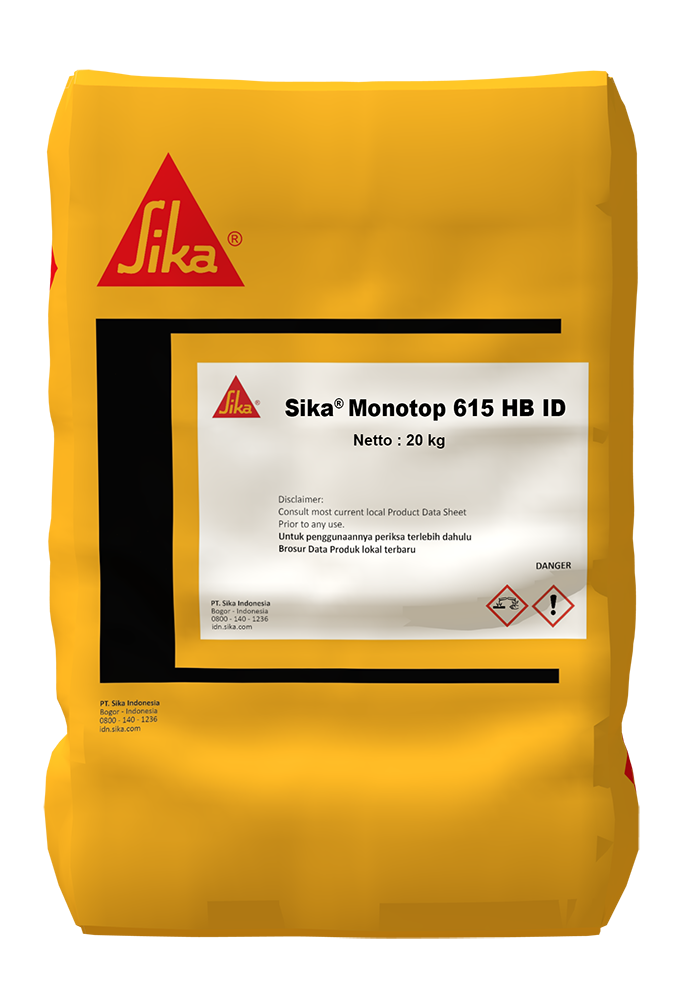

Sika MonoTop®-615 HB ID

HIGH BUILD POLYMER MODIFIED REPAIR MORTAR

Sika MonoTop®-615 HB ID is a cementitious, polymer modified, one component, repair mortar containing reactive microsilica. Sika MonoTop®-615 HB ID is part of Monotop system for concrete repair and protection.

  • Excellent high build and workability characteristics
  • Enables rapid repair work to be undertaken
  • One component-just add water and mix.
  • Layer thickness up to 50 mm are possible in vertical application
  • Micro silica and polymer modified
  • Good resistance to water and chloride ion penetration
  • Improve sulphate resistance
Product Data Sheet Show all documents

Overview

Usage

  • The lightweight nature of Sika MonoTop®-615 HB ID enables very thick layers to be applied in vertical and overhead applications
  • It is ideal for use in repairing damaged and spalled concrete caused by reinforcement corrosion
  • Sika MonoTop®-615 HB ID can be used for most types of general concrete repair and refurbishment work


Advantages

  • Excellent high build and workability characteristics
  • Enables rapid repair work to be undertaken
  • One component-just add water and mix.
  • Layer thickness up to 50 mm are possible in vertical application
  • Micro silica and polymer modified
  • Good resistance to water and chloride ion penetration
  • Improve sulphate resistance

Packaging

20 kg bag

Colour

Powder / Grey

Product Details

Composition

Cement based

Shelf life

9 months from date of production if stored properly in unopened original packing

Storage conditions

Stored in dry condition between +10 °C - +30 °C

Density

~1.8 kg/L of freshly mixed mortar

Compressive strength

1 day

~19.0 N/mm2

7 days~30.0 N/mm2
28 days~40.0 N/mm2

Flexural-strength

1 day

~5.0 N/mm2

7 days~8.0 N/mm2
28 days~10.0 N/mm2

Tensile adhesion strength

28 days

~1.5 N/mm2 (concrete failure)*

*Using bonding agent SikaTop®-121

Application

Mixing ratio

Water : Powder = 1 : 7.3 – 8.1 parts by weight
(i.e. approx 2.6 litre water per bag 20 kg)

Layer thickness

Minimum 10 mm / Maximum 50 mm.

(Max 10 mm for overhead application up to 30 mm thick on small area application).

Ambient air temperature

+5 °C to +35 °C

Pot Life

~30 min

Consumption

For 1 litre of fresh mortar: approx. 1.60 kg powder is required. Material consumption depends on concrete surface and application method.

MIXING

Pour 2.6 litres of clean water into a suitable mixing container and slowly add all the powder while mixing continuously with a mixing paddle attached to a low speed electric drill (max 500 rpm, with power approx. 1000 watt).

Thoroughly mix until a smooth, lump free consistency is achieved. A minimum mixing time of 3 minutes is recommended.

The water can be adjusted ± 10 % to suit the consistency desired.

APPLICATION

While bonding coat of SikaTop®-121 is still tacky, pack the mortar well into the cavity of repair. Use a placing rather than a rendering technique to fill all voids and ensure thorough compaction is achieved.

Force the Sika MonoTop®-615 HB ID against the edge of the repair and progressively work towards the center.

For repair in excess of 50 mm thick, apply in layers ensuring that each previous layer is sufficiently hardened and well keyed. If previous layers are over 48 hours old, scabble the surface and dampen. SikaTop®-121 may be used as a bonding slurry between layers.

Steel trowel the final layer if required to achieve a smooth, tight finish.

CURING TREATMENT

As with all cementitious based mortar, Sika MonoTop®-615 HB ID must be protected against direct sunlight and wind while hardening. Cover all exposed mortar with wet hessian, plastic sheeting or use Sika curing compound.
