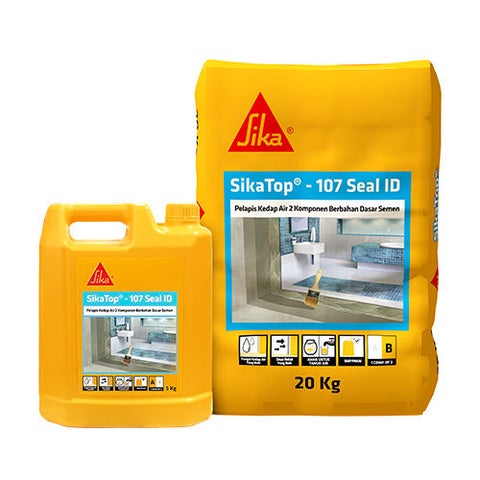

SikaTop®-107 Seal ID

CEMENTITIOUS WATERPROOFING COATING - 2 COMPONENT

SikaTop®-107 Seal ID is a two component, pre-packed polymer modified cementitious waterproofing slurry mortar comprising of a liquid polymer and cement with selected grades of sand and several admixtures.
It has excellent adhesion and high performance.

  • Pre-packed mix
  • Easy to use and apply, only requires mixing of both material
  • Consistency can be chosen for application by brush or by trowel
  • Good adhesion on sound substrates
  • Impermeable
  • Good resistance to abrasion and erosion (non-exposed system)
  • No drying or shrinkage cracks if used according to instruction
  • Non-corrosive, non-flammable
  • Non toxic
  • Slightly flexible
Contact our Waterproofing Experts
Product Data Sheet Show all documents

Usage

For external and internal non-exposed waterproofing, on concrete and mortar in:
  • Toilet
  • Bathroom
  • Wet Room e.g kitchen, laundry area
  • Small Water tank, etc


Advantages

  • Pre-packed mix
  • Easy to use and apply, only requires mixing of both material
  • Consistency can be chosen for application by brush or by trowel
  • Good adhesion on sound substrates
  • Impermeable
  • Good resistance to abrasion and erosion (non-exposed system)
  • No drying or shrinkage cracks if used according to instruction
  • Non-corrosive, non-flammable
  • Non toxic
  • Slightly flexible

Packaging

25 kg set (Comp. A : 5 kg and Comp. B : 20 kg)
27 kg set (Comp. A : 5.4 kg and Comp. B : 21.6 kg)

Colour

Form

Color

Comp. A = LiquidComp. A = White
Comp. B = PowderComp. B = Grey
Comp. A + B = Concrete Grey

Product Details

Product Information

Composition

Polymer modified portland cement

Shelf life

9 months from date of production if stored properly in original, unopened and undamaged sealed packaging

Storage conditions

Store in dry, cool, and shaded place conditions at temperatures between +5 °C and +30 °C.

Density

2.1 – 2.2 kg/L (Comp. A + B mixed)
Technical Information

Compressive strength

28 days

~30 N/mm2

Flexural-strength

28 days

~8 N/mm2

Tensile adhesion strength

28 days

~0.8 N/mm2 *

* trowelable consistency

Application

Application Information

Mixing ratio

For brush application

Comp. A (liquid) : Comp. B (powder) = 1 : 4 (by weight)
For trowel applicationComp. A (liquid) : Comp. B (powder) = 1 : 5 (by weight)

Ambient air temperature

+10 °C min. / +35 °C max.

Substrate temperature

+10 °C min. / +35 °C max.

Pot Life

~60 minutes (at +30 °C).

Pot life is shorter at higher temperatures.
Consumption

Consumption

1.0 - 1.5 kg set/m2/coat (using brush, depending on substrate surface and type of application).
2 coats always required.
Application steps

MIXING

  • Pour 90% of component A (liquid) into mixing vessel.
  • Add all component B (powder) and mix until you have slurry of uniform consistency. Add rest of component A and mix again until you have uniform, lump-free mixture.
  • A mechanical slow speed mixer is recommended. Mixing time 2-3 minutes.
  • If SikaTop®-107 Seal ID is to be applied by trowel, use only 80% of component A (liquid).

APPLICATION

By brush:

On vertical surface use suitable brush with synthetic bristles.
On horizontal surface use rubber slide or push-broom.

  • Apply SikaTop®-107 Seal ID into prepared substrate with consumption 1 - 1.5 kg/m2 per coat. Always apply a minimum of 2 coats.
  • The first coat has to be applied on the damp substrate (pre-wetted), with consumption 1 - 1.5 kg/m2 per coat.
  • After the 1st coat dry (2-6 hours), apply the 2nd coat with a crosswise direction.
  • Apply min. 2 coats. Maximum waiting time between first and second coats is 48 hours.
  • Use Sika reinforcement membrane when necessary at corner and detailing area.



By trowel:

  • Use flat trowel to distribute SikaTop®-107 Seal ID into prepared substrate with consumption 1 - 1.5 kg/m2 per coat. Always apply a minimum of 2 coats.
  • The first coat has to be applied on the damp substrate (pre-wetted).
  • The second coat will be applied after the first coat started to set and can support the following coat, usually after 2-6 hours depending on climate.
  • Finish off by brushing with dry sponge when setting of second coat has started.
  • Maximum waiting time between first and second coats is 48 hours.
  • Use Sika reinforcement membrane when necessary at corner and detailing area.



IMPORTANT NOTES :
Must use component A (liquid) and B (powder) of SikaTop®-107 Seal ID in 1 set, CANNOT be replaced one of them with other material or added with other ingredients (water, cement or sand).
Protect the applied product with screed, tile, or granit.

CURING TREATMENT

Protect the freshly applied product against direct sunlight and strong winds.
Protect the freshly applied product from rain and water splashes until fully hardened. (± 6 hours).

CLEANING OF EQUIPMENT

Clean all tools and application equipment with water immediately after use.
Hardened and/or cured material can only be mechanically removed.
