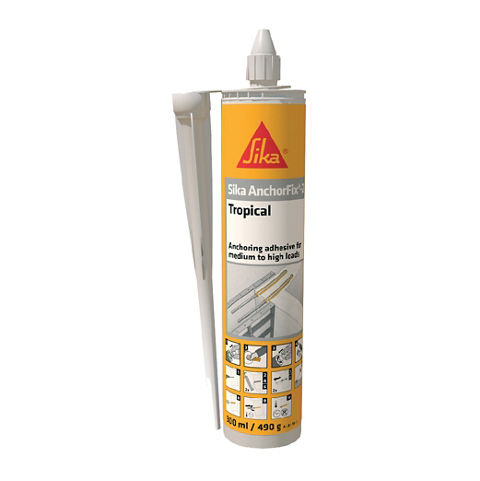

Sika AnchorFix®-2+ Tropical

Sika AnchorFix®-2+ Tropical

Anchoring adhesive for medium to high loads in hot climates

Sika AnchorFix®-2+ Tropical is a solvent and styrene free, epoxy acrylate based, 2-component anchoring adhesive for hot or tropical climate conditions.

  • Fast curing
  • Application with single-tube dispensers
  • Very good load capacity
  • ETA for anchoring in concrete
  • ETA for post installed rebar connections

  • Suitable for cracked and uncracked concrete
  • Suitable for contact with drinking water
  • Thixotropic: non-sag in vertical and overhead applications
  • Styrene-free
  • Low odour
  • Low wastage
Product Data Sheet Show all documents

Usage

The Product is used as a fast-curing anchoring adhesive for the following substrates and materials:
  • Reinforcing steel
  • Threaded rods
  • Bolts and special fastening systems
  • Cracked or solid concrete
  • Solid masonry
  • Steel
  • Hard natural stone
  • Solid rock

Advantages

  • Fast curing
  • Application with single-tube dispensers
  • Very good load capacity
  • ETA for anchoring in concrete
  • ETA for post installed rebar connections

  • Suitable for cracked and uncracked concrete
  • Suitable for contact with drinking water
  • Thixotropic: non-sag in vertical and overhead applications
  • Styrene-free
  • Low odour
  • Low wastage

Packaging

300 ml standard cartridge

12 cartridges per box

Refer to the current price list for available packaging variations.

Colour

Part A

off white

Part B

black

Part A+B

grey

Product Details

Sustainability / Certifications / Approvals

SUSTAINABILITY

  • Contributes towards satisfying Indoor Environmental Quality (EQ) Credit: Low-Emitting Materials under LEED® v4

CERTIFICATES AND TEST REPORTS

  • Drinking Water System Components NSF/ANSI 61, IAPMO R&T, Certificate No. K-8319

  • CE marking and declaration of performance based on European Technical Assessment ETA-14/0346 Bonded fastener for use in cracked and uncracked concrete for a service life of 50 and/or 100 years. ETA issued on the basis of EAD 330499-01-0601 Bonded fasteners for use in concrete.

  • CE marking and declaration of performance based on European Technical Assessment ETA 13/0779 Post installed rebar connections. ETA issued on the basis of ETAG 001 Metal anchors for use in concrete, Part 1: General and Part 5: Bonded Anchors.


Product Information

Shelf life

15 months from date of production.

All cartridges have the expiry date printed on the label.

Storage conditions

The Product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +25 °C. Always refer to packaging.

Refer to the current Safety Data Sheet for information on safe handling and storage.

Density

Part A

1.60 kg/l to 1.75 kg/l

Part B

1.45 kg/l to 1.50 kg/l

Part A+B mixed

1.65 kg/l to1.75 kg/l

Volatile organic compound (VOC) content

62 g/l

(ASTM D2369)
Technical Information

Compressive strength

Cured 7 days at +20 °C

70 N/mm2

Modulus of elasticity in compression

Cured 7 days at +20 °C

7 000 N/mm2

Flexural-strength

Cured 7 days at +20 °C

29 N/mm2

Tensile strength

Cured 7 days at +20 °C

15 N/mm2

Service temperature

Time

Minimum

Maximum

Long term

-40 °C

+50 °C.

Short term (up to 2 hours)

-

+80 °C

Temperature resistance

Long term

+50 °C

Short term (up to 2 hours)

+80 °C

Application

Application Information

Mixing ratio

Part A : Part B

10 : 1 by volume

Layer thickness

Maximum

5 mm

Sag flow

Non-sag, even overhead

Material temperature

Maximum

+40 °C

Minimum

+15 °C

Ambient air temperature

Maximum

+40 °C

Minimum

+15 °C

Dew point

Beware of condensation. Substrate temperature during application must be at least +3 °C above dew point.

Substrate temperature

Maximum

+40 °C

Minimum

+15 °C

Curing time

Temperature

Open time - Tgel

Curing time - Tcur

+35 °C to +40 °C

3.5 minutes

40 minutes

+30 °C to +35 °C

5 minutes

50 minutes

+25 °C to +30 °C

7.5 minutes

85 minutes

+20 °C to +25 °C

10 minutes

145 minutes

+15 °C to +20 °C

Minimum cartridge temperature: +15 °C

15 minutes

5 hours
Application steps

SUBSTRATE QUALITY

Mortar and concrete must be older than 28 days.

Verify the substrate strength (concrete, masonry, natural stone). Perform pull-out tests if the substrate strength is unknown.

Make sure that the anchor hole is clean, dry, free from oil and grease. Remove loose particles from the anchor hole.

Clean threaded rods and reinforcement bars thoroughly. Remove oil, grease or any other substances and particles such as dirt.

MIXING

GETTING THE CARTRIDGE READY: 300 ML, 550 ML OR 850 ML

02-en-AnchorFix-1_deck4-24

1. Unscrew the cap

02-en-AnchorFix-2b_deck4-24

2. Cut the film

02-en-AnchorFix-3_deck4-24

3. Screw on the static mixer



02-en-AnchorFix-4_deck4-24

4. Place the cartridge into the dispenser and start application

GETTING THE CARTRIDGE READY: 350 ML OR 825 ML

02-en-AF_350ml_10-600

1.Unscrew the cap

02-en-AF_350ml_20-600

2. Remove the cap

02-en-AF_350ml_30-600

3. Screw on the static mixer

02-en-AF_350ml_40-600

4. Place the cartridge into the dispenser and start application



APPLICATION

Note: Test if the Product is suitable for the substrate

Due to the variety of possible substrates, the Product's suitabilityfor the substrate must be confirmed before application, particularly in terms of desired bond strength, composition, porosity, potntial surface staining or discolouration.
a) Test the Product's suitability in a sample area.



ANCHORS IN SOLID MASONRY OR CONCRETE:

1. IMPORTANT Make sure that the drill hole diameter is in accordance with the anchor size.

Drill a hole with an electric drill to the diameter and depthspecified in the Technical Documentation listed in the section Further Information.

02-en-AnchorFix-1-10_1_Deck4-24

2. IMPORTANT Use oil free compressors.Clean the drill hole with a blow pump or by compressed air, starting from the bottom of the hole.

Note: The hole must be cleaned a minimum of two times.

02-en-AnchorFix-1-10_2_deck4-24

3. Thoroughly clean the drill hole with the steel brush.

Note: The diameter of the brush must be larger than the diameter of the drill hole and the hole must be cleaned a minimum of two times.

02-en-AnchorFix-1-10_3_Deck4-24

4. IMPORTANT Use oil free compressors.

Clean the drill hole with a blow pump or by compressed air, starting from the bottom of the hole.

Note: The hole must be cleaned a minimum of two times.

02-en-AnchorFix-1-10_2_deck4-24

5. Thoroughly clean the drill hole with the steel brush.

Note: The diameter of the brush must be larger than the diameter of the drill hole and the hole must be cleaned a minimum of two times.

02-en-AnchorFix-1-10_3_Deck4-24



6. IMPORTANT Use oil free compressors.

Clean the drill hole with a blow pump or by compressed air,starting from the bottom of the hole.

Note: The hole must be cleaned a minimum of two times.

02-en-AnchorFix-1-10_2_deck4-24

7. IMPORTANT Do not use this material.

Pump the Product until both parts come out uniformly. Release the gun pressure and clean the cartridge nozzle with acloth.

02-en-AnchorFix-1-10_7_deck4-24

8. IMPORTANT Do not entrap air into the hole.

Inject the Product into the hole starting from the bottomwhile slowly drawing back the static mixer.

Note: For deep holes extension tubing can be used.

02-en-AnchorFix-1-10_8_deck4-24

9. IMPORTANT The anchor must be placed within the opentime.

Insert the anchor with a rotary motion into the filled drill hole.

Note: Some adhesive must come out of the hole.

02-en-AnchorFix-1-10_9_deck4-24

10. Do not load or move the anchor during the hardening time.

11. Immediately clean tools with Sika® Colma Cleaner.

12. Wash hands and skin thoroughly with warm soap water.

02-en-AnchorFix-1-10_10_deck4-24



CLEANING OF EQUIPMENT

Clean all tools and application equipment with Sika® Colma Cleaner immediately after use. Hardened material can only be removed mechanically.
